KRK's ROKIT 4 G3 (Generation 3) powered studio monitor offers professional performance and accuracy for recording, mixing, mastering and playback. The system consists of a 1" soft dome tweeter and 4" glass-Aramid composite woofer. It delivers high frequencies up to 35kHz, vocal clarity and extended bass response. The proprietary bi-amped, class A/B amplifier grants SPL up to 100dB. The ROKIT waveguide is designed to ensure detailed imaging in the listening position. The front-firing bass port reduces boundary coupling to allow flexible positioning in the room while the engineered surface reduces diffraction distortion. Multiple input connections ensure the ROKIT 4 G3 will easily integrate in any system configuration. The benefit and the solution for small desks that require big sound. The ROKIT 4 is the most compact solution of the KRK ROKIT series.
KRK ROKIT 4 G3 Features
Bi-amped, class A/B amplifier offering large headroom and low distortion
Proprietary waveguide optimized for superior imaging
1" Soft-dome tweeter provides pristine clarity and extended response up to 35kHz
High-frequency adjustment tailors the system to personal taste
Lightweight, glass-Aramid composite woofer delivers clear midrange and tight bass
Low-frequency adjustment tailors the monitors to taste and adjusts for room acoustics
Front Firing Port — Low-frequency extension while reducing boundary coupling
Radiused edges reduce distortion from diffraction
Low-resonance enclosure for minimized distortion and colorization
Multiple audio input connectors (XLR, ¼", RCA) for universal connectivity in any studio environment
Factory installed foam pad provides isolation between the speaker and surface
KRK ROKIT 4 G3 Technical Specifications
Configuration:2-Way
System type:Active Studio Monitor
MF/HF Cone Material:Aramid Glass Composite Woofer
LF Transducer:4" Aramid Glass Composite Woofer
Frequency Range (-10dB):51Hz - 35kHz
Crossover Frequency:2.3kHz
Total Power:30 Watts
HF Power:10 Watts
LF Power:20 Watts
Peak SPL:100 Watts
Auto-Standby:30 Minutes
Cabinet Material:MDF

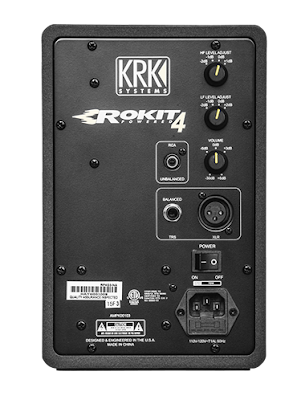

Input Connectors:
Unbalanced 7kΩ RCA
Balanced 10kΩ ¼" TRS and XLR. Pin 2 & Tip = Hot\Positive, Pin 3 & Ring = Cold\Negative
Pin 1 & Sleeve = Ground
Controls:
HF Level Adjust (-2dB, -1dB, 0, +1dB)
LF Level Adjust (-2dB, -1dB, 0, +2dB)
System Volume (-30dB to +6dB)
Magnetic Shielding:Yes
Dimensions (H x W x D):8.31" (211mm) x 6.09" (155mm) x 8.82" (238mm)
Product Net Weight:8.67 Lbs. (3.93 Kg.)
Fuse Rating:Slow Blow Type, 5mm x 20mm
