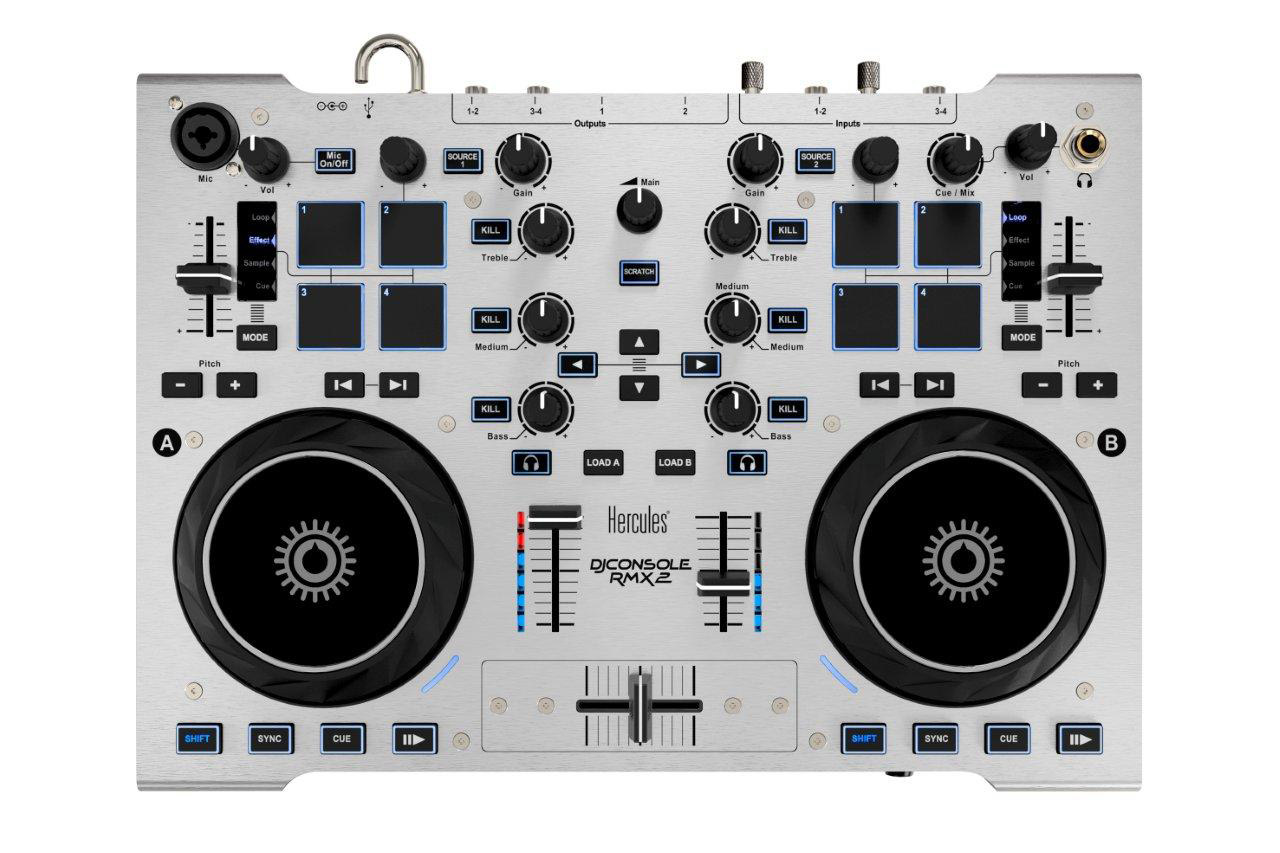

Hercules DJConsole RMX 2 Digital DJ Controller

Hercules DJConsole RMX 2 Digital DJ Controller

High resolution DJ controller

High-resolution audio: 96KHz/24-bit
High-resolution faders: 14-bit MIDI mode

Outstanding audio quality

Sampling up to 96KHz/24-bit
XLR balanced main output (1-2)
XLR balanced microphone input

2-deck DJ controller

2 jog-wheels with pressure detection
8 velocity pads
High resolution controls: 14-bit MIDI mode on all faders

Metal frame

Brushed aluminium top panel
Steel basis

Secure

Rugged casing supporting any kind of mix
Hook protecting the USB connector from unexpected removal
Changeable cross-fader compatible (Mini-Innofader® compatible)
Power adapter protecting the audio from USB power fluctuations

Designed for mobile DeeJays

Transport bag included
All-in-one design: controller + audio
Rugged metal enclosure for transport conditions
Light and compact enough to be carried on the shoulder
Included DJ software: Virtual DJ 8 and DjucedTM40°

Technical specifications

DJ Audio Interface

High Resolution Audio

96KHz / 24-bit in Windows (ASIO) & Mac (Core Audio)
Supports lower sampling rates (44.1 / 48 / 88.2 KHz)

Outputs
Output channels 1-2
2 balanced XLR = Master out

Strong level, for public address amplifiers
Balanced output = music protected from interferences in cables

2 RCA = Booth out

Use = for monitor speakers, close from the DeeJay

Output channels 3-4

2 stereo ¼" jack headphones outputs
2 RCA output (to connect to an external mixer)

Inputs
4-channel input in RCA, to mix 2 external sources

Line/Phono switches: for line or phono sources
Level setting (software): standard (line), boost (CDJ players)

Microphone input: XLR/Jack combo plug, balanced

Balanced input, for the best sound with high-end microphones
Also support consumer unbalanced microphones
Talk-over the mix

DJ Control Surface

2-deck DJ Controller

36 transport buttons
12 rotary potentiometers
8 velocity sensitive pads
5 faders
2 rotary encoders
2 jog wheels with pressure detection

Transport buttons
DJConsole Rmx2 transport buttons are made of:

A tactile switch with a short travel and a detent,
A rubber cap with a smooth contact, and 22 buttons include an inner backlight showing the status.

Rotary potentiometers

2 potentiometers (microphone and headphones volume) set an analogue volume (setting headphones & mic preamplifiers).
10 other rotary potentiometers send an extended MIDI control (14-bit MIDI mode, compatible with standard 7-bit MIDI control).
All rotary potentiometers have a rubber cap.

Velocity sensitive pads

Each deck has 2 sets of 4 pads, with 4 modes per pad (Loop, Effect, Sample, Cue), providing 16 controls per deck.
As pads are velocity sensitive, they can send progressive commands (for example set the volume of a sample).
All pads include a backlight.

Faders

5 faders send an extended MIDI control (14-bit MIDI mode, compatible with standard 7-bit MIDI control).
The volume and pitch faders have a rubber pad.
The pitch fader has a centre detent.
The cross-fader is removable (its slot fits with a Mini-Innofader®).

Encoders

The encoders can modulate the effects sent via the pads.
The encoders have a rubber pad.

Jog- wheels

The jog wheels use a pressure detection to set the scratch on/off.
A side LED shows the status of the pressure detection.

Box contents

Hercules DJConsole Rmx2
USB cable, transport bag, power adapter
CD with PC/Mac DJ software
Printed installation guide + online manual

Minimum configuration

Computer CPU: 1.5 GHz or faster CoreTM 2 Duo or AMD 64-bit
2 GB of RAM or more
Powered USB port
100 MB available disk space
CD/DVD-ROM drive
Internet access
Amplified stereo speakers and headphones

Operating system (32/64-bit)
MS Windows® XP/Vista/7/8 or
Mac OS® 10.6,10.7, 10.8 (Core Duo)

Native Instruments Kontrol Z2 2+2 CHANNEL CONTROL Pro DJ Mixer

Native Instruments Kontrol Z2 2+2 CHANNEL CONTROL Pro DJ Mixer

TRAKTOR KONTROL Z2 puts our most advanced DJ controller in the body of a professional 2+2 channel mixer – TRAKTOR SCRATCH included.

2 stand-alone channels + 2 full Remix Channels
Sturdy aluminum chassis, with Innofaders™
Intuitive control of Macro FX, and Flux Mode


TRAKTOR KONTROL Z2 is the world’s first 2+2 DJ control mixer. Built tough for pro club use, the Z2 excels both as a state-of-the-art club mixer alongside turntables and CDJs, and as the hub of an advanced setup of Remix Decks and controllers.

All-new Macro FX and Flux Mode in the latest TRAKTOR software expand your creative arsenal. And the heavy metal, standard installation-height chassis, sturdy RGB control buttons, and Innofaders™ assure rock-solid dependability. Whatever your style, however you play, welcome to the future of mixing.

Combining the best of all that's come before it, TRAKTOR KONTROL Z2 takes a powerful two-channel stand-alone mixer, adds an additional two channels for Remix Decks, puts TRAKTOR SCRATCH PRO 2 in the package and rolls it out in luxurious style.

The ultra-stable, aircraft-grade aluminum chassis provides an intuitive layout instantly familiar to DJs, offering unprecedented sonic control. Throw in an integrated premium audio interface and dedicated TRAKTOR controls for cue points and Remix Decks and your options become infinite. Whatever your style, you've never had control like this before.

TRAKTOR KONTROL Z2 delivers the reliability and pro sound quality essential for the world’s biggest stages and hottest clubs.

Pro XLR outputs, a booth output and 24-bit sound quality mean your sets hit with maximum impact. Precision knobs, buttons, multi-colored cue point controls and Innofaders™ give you ultra-accurate control of your sets. Whether spinning vinyl, CDJs, playing digital files, or using TRAKTOR SCRATCH timecode control, switching formats is just a push of a button away – lightning-fast, uninterrupted creative flow. And the heavy metal chassis means your busy schedule won’t take its toll on your new tool of choice.

Think you know your limits? You’re about to erase them.

For the first time, TRAKTOR KONTROL Z2 adds Macro FX to the TRAKTOR software. Build a big drop or destroy your track beyond recognition with fresh new effect combos like Wormhole, LaserSlicer and Bass-o-matic – get expressive sound manipulation with intuitive, one-knob action.

Flux Mode tracks the time while you’re juggling cue points or looping, and lets you drop back in at exactly the right moment – a powerful weapon for all creative DJs.

Integrate multiple TRAKTOR KONTROL F1 and X1 controllers with plug-and-play simplicity thanks to the Z2’s USB hub, freeing up additional ports on your laptop.

Start using the included flagship TRAKTOR SCRATCH PRO 2 with Remix Deck™ technology and TRAKTOR SCRATCH timecode vinyl in record time* – simply connect the Z2 to your computer with a single USB cable.

Connect your turntables or CD decks with the inputs on the mixer and start using timecode control via vinyl or CDs. And thanks to TRAKTOR’s advanced HID integration, the Z2 integrates effortlessly with the latest Pioneer CDJ generation and mixers.

TRAKTOR KONTROL Z2 is the ultimate TRAKTOR controller – built like a tank for rock-solid performance. Personalize your experience no matter your style or preferred workflow with these add-on controllers:

TRAKTOR KONTROL F1 – Control of an entire Remix Deck with up to 64 samples and loops – in color!
TRAKTOR KONTROL X1 – Transport control, plus in-depth control of classic TRAKTOR effects and more
TRAKTOR KONTROL Bag – Elevate your controllers to Z2 and standard turntable height and get protection against dust and knocks

*You will receive a download link for the TRAKTOR SCRATCH PRO 2 software instantly after registering your hardware unit with Native Instruments. Remix Deck™ content is available as a separate free download. The software requires activation after installation. Please note that TRAKTOR SCRATCH products are not available in the Netherlands.

SYSTEM REQUIREMENTS

Windows 7 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel Core 2 Duo or AMD Athlon 64 X2, 2 GB RAM (4 GB recommended)

Mac OS X 10.6, 10.7 or 10.8 (latest update), Intel Core 2 Duo, 2 GB RAM (4 GB recommended)

General: Monitor with 1024 x 768 screen resolution, USB 2.0, 1 GB free disc space, high-speed internet required
DIMENSIONS

Dimensions: 272mmx388mm x109mm (WxLxH)

Weight: 5.1 kg / 11.2 lbs

POWER SUPPLY

Internal power supply with 3-pin IEC power cable included. 115-230V, 50/60Hz, 0.5 – 0.75A. No additional power supply or battery required.

HARDWARE SPECIFICATIONS
Overall:
Sampling rate 48ksps
Converter wordlength 24-bit
Analog input channels 7
Analog output channels 6
USB audio interface USB 2.0 hi-speed, audio class compliant

Line and aux inputs:
Input impedance 47kOhm
Maximum input level 13dBu
Noise floor -97dBu / -99dBu(A)
Dynamic range +110dB / +112dB(A)
THD+N <0.0012% (-98.4dB) @ +8dBu
Frequency response 20Hz - 20kHz +/-1dB

Phono inputs:
Input impedance 47kOhm
Maximum input level -22dBu / 62mVrms
Noise floor -113dBu / -122dBu(A)
Dynamic range +94dB / +99.9dB(A)
THD+N <0.0015% (-96.8dB) @ -22.5dBu
Frequency response 20Hz - 20kHz, RIAA curve +/-1dB

Microphone input
Input impedance 4.75kOhm differential
Maximum input level -9.5dBu
Noise floor -96.3dBu / -99.2dBu(A)
Dynamic range +86.9dB / +89.7dB(A)
THD+N <0.0011% (-99dB) @ -14dBu
Frequency response 20Hz - 20kHz, -2dB

Master XLR and booth outputs:
Maximum output level +18dBu
Noise floor -89.3dBu / -92dBu(A)
Dynamic range 111.1dB / 113.8dB(A)
THD+N <0.0007% (-103dB) @ 997Hz, -1dBFS
Frequency response 20Hz - 20kHz +/-1dB

Master RCA outputs:
Maximum output level +14.13dBu / 3.93Vrms
Noise floor -93dBu / -96.5dBu(A)
Dynamic range +105dB / +108dB(A)
THD+N <0.0015% (-96.8dB) @ +8dBu
Frequency response 20Hz - 20kHz +/-1dB

Headphone output:
Maximum output voltage +10.6dBu / 2.62Vrms
Maximum output power 100mW
THD+N <0.006% (-84.4dB) @ 997Hz, 10dBu
Dynamic range +102dB / +105dB(A)
Frequency response 20Hz - 20kHz +/1dB

Pioneer DJM-2000 Nexus Pro DJ 4 channels mixer [ First look -- Coming Dec 2012 / Jan 2013 ]

Pioneer DJM-2000 Nexus Pro DJ 4 channels mixer [ First look -- Coming Dec 2012 / Jan 2013 ]

THE MUSIC MIX CONTINUES WITH PIONEER’S LATEST PREMIUM DJ MIXER

Pioneer DJM-2000nexus Adds Exciting New Features

LONG BEACH, Calif. (November 15, 2012) – Pioneer Electronics (USA) Inc., Professional Sound and Visual Division, is making the top DJ mixer in its line even better with the announcement of the new DJM-2000nexus performance mixer. The perfect complement to the recently released CDJ-2000nexus multi player, the DJM-2000nexus offers more music mixing functions, including the new Beat Slice and Sync Master, available in conjunction with Pioneer’s Pro DJ Link. In addition to the newest features, the mixer incorporates a built-in full-color 5.8-inch LCD multi-touch panel with screen effects, evolved Beat Effects, Pro DJ Link and MIDI control capability.

“The first generation DJM-2000 has become today’s premium professional mixer, found in the best and hottest venues around the world, and now we’re making the next edition of the mixer better than ever to enable DJs to perform at the highest level,” said David Arevalo, senior marketing manager, Professional Sound and Visual Division for Pioneer Electronics (USA) Inc.

New Functions of Pro DJ Link

With Pro DJ Link, the DJM-2000nexus can be easily linked together (via LAN cables) with multiple Pro DJ Link enabled Pioneer CDJ players for the convenience of sharing a single music-filled SD card1 or USB storage. In addition, up to two laptop computers pre-installed with Pioneer’s rekordbox™ music management software can be interfaced with the DJM-2000nexus for times when two DJs want to transition between performances.

Two additional functions, Beat Slice and Sync Master, were added to the mixer to take advantage of the Pro DJ Link connection:

BEAT SLICE – When Beat Slice is activated, the BPM of music from a player is automatically synced, a short sample of the track (slice) is temporarily stored in the DJM-2000nexus, and its waveform appears on the built-in touch panel display. The waveform is separated and shown in eight parts (single, quarter, half, and eighth beats) on the display. A touch of each part creates entirely new sound effects that play along with the beat of the sampled music.
SYNC MASTER – The beats (tempo and beat position) of tracks playing on multiple players connected to the mixer via Pro DJ Link are automatically synchronized with the master clock of the DJM-2000nexus. The playback tempo and beats can also be adjusted using the built-in touch panel display, and numerous tracks can be arranged with ease without having to synchronize the beats of each player.

High Quality Audio Output

The DJM-2000nexus delivers excellent sound quality, utilizing an audio circuit clock that features a highly stable crystal oscillator, as well as noise reduction circuitry in its audio power source. The mixer also features a balanced hybrid op-amp and balanced output circuit in the analog processing stage to decrease induced noise significantly, resulting in a dynamic range of 107dB with 0.004% THD.

High Performance and Great Features

A newly integrated peak limiter keeps audio playing at all times, even at maximum output level, limiting distortion during playback and preventing damage to the mixer. To increase durability and ensure smooth operation, the DJM-2000nexus features high-performance channel faders that can withstand heavy use.

Layout – The mixer now utilizes chrome-plated knobs for adjusting effect frequencies as well as white LED illumination for the beat button to match the look of the CDJ-2000nexus perfectly. The top center section of the mixer features EFX capabilities to provide a bounty of digital effects, while each side section of the panel offers audio mixing controls for up to four digital or USB sources. The middle section contains INST FX (Instant Instrument FX) functions for additional sound effects.
5.8-inch Multi-Touch Display– The DJM-2000nexus incorporates a full-color 5.8-inch LCD multi-touch panel for remixing beats and adding audio effects with a simple touch of the screen. Users can also simultaneously manipulate the displayed controls on the panel by touching different areas of the screen at the same time. Four different performance modes are available:
Beat Slice – Enables a section of a track to be stored for additional audio effects
Frequency mix – Enables more precise mixing within seven frequency ranges. For example, users can enhance just the bass region within the music they’re mixing.
Sidechain remix – DJs can create seven different dynamic audio effects by touching the screen.
MIDI mode – Allows the user to assign various controls displayed on the LCD screen to external DJ software via MIDI. Four types of MIDI modes are available for more performance flexibility.
Evolved Beat Effects – Numerous buttons for the evolved Beat Effects were added for selecting multiple effects and beat parameters. Manipulation of the sound effects can be made using the Effect Frequency knobs that change the low, mid and high frequency bands of the music. With the turn of a knob, users can enhance the effects of each frequency band, i.e., an echo added specifically to the vocals of the music or a doubling of the hi-hat rhythm, providing incredible performance options.
Instant Instrument FX – The INST FX provides six additional audio effects that include Noise, HPF, LPF, Jet, Zip and Crush. Each effect can be brought into the channel with a turn of the Filter knob. Additionally, the Parameter knob allows the effects to be fine tuned.
Live Sampler – A cool feature of the mixer is Live Sampler, which allows the sound from a microphone or from the MASTER output to be recorded directly into the mixer. The “sampled” sound can instantly be transferred via LAN cable to a CDJ-2000nexus or CDJ-900 for scratching or sampling.
Link Monitor – When linked with a CDJ-2000nexus player, the mixer informs the DJ of its connected status. The JOG rings of the turntable change color based on the current on-air status and channel number connection, providing quick visual indications to the DJ.
USB interface – The DJM-2000nexus features a USB audio interface2 that allows a direct computer connection without the need for an external sound card. Up to four audio sources can be assigned to each channel, providing even more flexibility. For additional convenience, the MASTER output can be connected directly to a computer for recording3 of performances.

Additional features of the DJM-2000nexus include:

Switching 3-Band EQ/Isolator – Equipped with a switching 3-band EQ (+6dB to -26dB) and 3-band Isolator (+6dB to -∞dB) on each channel
Digital In – Digital audio inputs for each channel with no deterioration in sound quality
Fader Start Play – Connection with Pioneer CDJ player(s) with PRO DJ LINK or control cable allows the mixer to start the turntable by switching faders
Talk Over – Lowers the volume of the music when a connected microphone is used
Peak Level Meter – Displays input levels at a glance
Cross Fader Assign Function – Allows the flexible assignment of the input on each channel to the cross fader
Fader Curve Adjust Function – Allows changes to cross fader and channel fader curves
Auto Standby Function – Switches power to standby mode when no operation or input is detected for a certain period of time.

Pioneer HDJ-500 DJ Headphone in Purple and Green [ Available in February / March 2013 ]

Pioneer HDJ-500 DJ Headphone in Purple and Green [ Available in February / March 2013 ]

Pioneer is introducing its new HDJ-500 headphones color into the entry-level DJ market in three color variations, Purple and Green.

HDJ-500 DJ Headphones for Enjoying Dance Music in the Club or on the streets. Clearly reproduces Low to Mid Range Sounds, such as Kick and Snare Drums, as demanded by DJs.

Features :

Clearly Reproduces Low- to Mid-Range Sound, such as Kick and Snare Drums as demanded by DJs.

Reproduces a rich low-range and increases the sound pressure by utilizing our newly developed 40 mm diameter driver unit, which uses a rare-earth super magnet and by narrowing the ear pad opening. Furthermore, by adopting the thickest diaphragm ever at 19 mm (micrometers) and a copper-clad aluminum wire (CCAW) voice coil, the headphone reproduces the clear low- to mid-range sounds necessary for DJ mixing, such as snare and kick drum sounds, which allows even entry-level DJs to readily pick out the tempo of the music.

Compatible with Various DJ Monitoring Styles :

The headphones allow for various DJ monitoring styles by employing a rotating arm structure that allows it to slide to about 60 degrees to the right housing and via the flexible headband we created that maintains side pressure, allowing the DJ to listen with just one ear.

Uses an Interchangeable Side-Mount Cord that doesn’t Hinder DJ Movement :

We adopted an interchangeable cord that plugs into one side of the headphones so it doesn’t hinder the movement of the DJ. The headphones come with a 1.2 m coiled cord (extendable to about 3 m) and a 1 m straight cord, which can be used for different purposes, be it whether listening to music out on the street or while DJ-ing.

Emulates the Design of Professional DJ Headphones :

We’ve created a simple and stylish design that emulates the design of Pioneer’s own professional DJ headphones, especially our flagship model, the HDJ-2000. The streamlined hanger makes it a snap to distinguish the left and right sides of the headphones.

Main Specifications :

Type: Fully enclosed dynamic headphones

Frequency Range: 5Hz – 28,000Hz

Impedance: 45 Ω

Max Input: 2000 mW

Sensitivity: 105 dB

Driver Units: 40 mm dia. dome type

Plug: 3.5 mm dia. 3P mini-plug (gold-plated, screw-in)

Weight: 195 g (not incl. cord)

Included: 6.3 mm dia. 3P plug adapter (gold-plated, screw-in)

Cord: 1.2 m side mount coil cord (extended 3 m), 1 m straight cord

Pioneer Digital DJ Controllers DDJ-AERO and DDJ-ERGO-V or ERGO-K carry bag pak DJC-SC2 [ coming this mid of December 2012 ]

Pioneer Digital DJ Controllers DDJ-AERO and DDJ-ERGO-V or ERGO-K carry bag pak DJC-SC2 [ coming in mid of December 2012 ]

Soft bag specifically designed to fit the XDJ-AERO and DDJ-ERGO

Cushions fitted to the devices offer protection from damage and vibration*1.
Material that is nap-raised on the inside protects devices from scratches.

Vertical structure makes it easy to insert/remove items even in confined spaces

A structure that opens vertically has been adopted to provide easy insertion/removal of devices even in confined spaces such as DJ booths.

Large pockets for spacious storage of DJ items

Two pockets are provided on the front of the bag for storage of headphones, cables, tablet devices and other items required by DJs. Thanks to these large partitioned pockets, there is plenty of room for smooth insertion/removal of devices. The interior of the bag is red, to make the stored items easy to identify.

3-way bag that can be carried in your preferred style

This can be carried in three different styles: as a handbag (vertically or horizontally), or as a backpack. When carrying the bag as a backpack, chest straps can be tied to fit it closely to your body and stop the bag from slipping from your shoulders.

Main Specifications

■ Maximum external dimensions: 340 mm（W）× 215 mm（D）× 670 mm（H）(excluding handbag）
　DJ equipment storage: 290 mm（W）× 110 mm（D）× 625 mm（H）
　Notebook computer storage: 410 mm（W）× 40 mm（D）× 280 mm（H）
■ Materials used: Polyester, nylon
■ Body weight: 2.5 kg

*1：Stored items may be damaged if excessive force is applied from the outside.

・Specifications and appearance are subject to change without prior notice.

AIAIAI TMA-1 limited Beatport edition Professional DJ Headphones

AIAIAI TMA-1 limited Beatport edition Professional DJ Headphones

The latest version of the acclaimed TMA-1 DJ headphones from AIAIAI is the TMA-1 Beatport edition. For this special edition, AIAIAI collaborated with one of the world's most innovative music services who have established themselves as the dynamic go-to for electronic music fans everywhere. The limited edition Beatport headphones feature striking green details and comes with a five dollar voucher ensuring immediate access to Beatport’s vast array of artists.

Specs

Transducer Principle
Dynamic, closed
Driver Unit Size
40 mm
Impedance
32±15% Ohm
Load Rating
0.1W
Frequency Response
20 to 20.000 Hz
Total Harmonic Distortion
<0.3%
Sensitivity
110±3dB Weight w/o
Weight without cable
190 Gram

In the box

1.7 meter cable
6.3 mm stereo plug converter.
2 sets of earpads (1 leather, 1 synthetic)
Heavy duty carrying pouch
Booklet
5 US$ voucher for Beatport.com

Features

Titanium high performance drivers

The tma-1 offers dynamic 40mm closed titanium drivers for clear and accurate sound in all frequencies.

Cable lock

You can choose to lock the cable to the TMA-1, to make sure it doesn't get pulled out while playing.

Interchangeable earpads

You can easily change the earpads. Choose between regular or noise isolating pads for DJ use.

Angled stereo plug

This makes it harder to accidentally pull the plug from the mixer, and less intrusive, when you are beat mixing.

Plug converter

An extra plug that lets you change from 3.5 mm plug size to the larger 6.3 mm is included.

Adjustable cups

You can easily change the position of the cups to make the headphones fit perfectly.

HAPPY and PROSPEROUS DEEPAVALI 2012

May the divine light of diwali spread into your Life, peace, prosperity, happiness and good health.

Wishing you all our Hindu friends and familys a very HAPPY and PROSPEROUS DEEPAVALI 2012 !!!

Illuminate your days in the year ahead.

See you'll in our future events & our store/academy too : )

Thank you for all the great support of all times .

Warm regards from:

Excessive Records / Royal DJ Academy,Kuala Lumpur.Malaysia.
