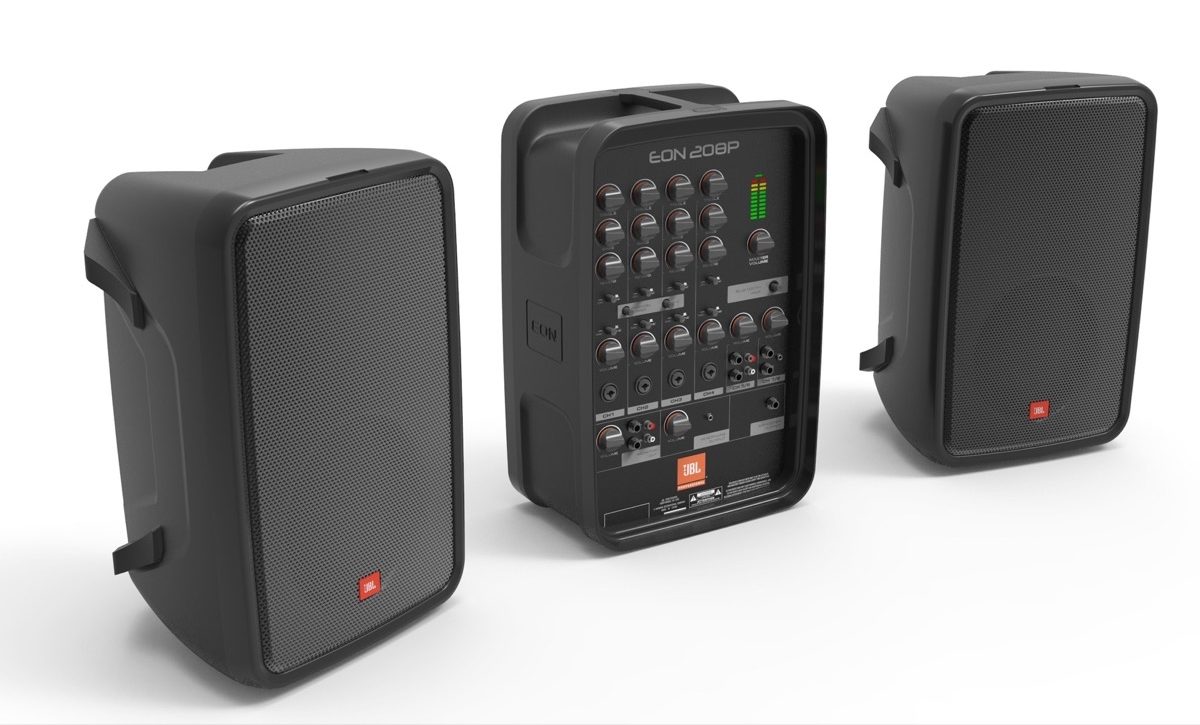

JBL EON208P Portable 8 in. 2-Way PA with 8-Channel Powered Mixer and Bluetooth

JBL EON208P

Detailshttps://www.jbl.com.my/professional/JBL+EON+208P.html?dwvar_JBL%20EON%20208P_color=Black-GLOBAL-Current

Portable 8 in. 2-Way PA with 8-Channel Powered Mixer and Bluetooth

Bring legendary JBL sound quality to your stage with the EON208P all-in-one portable PA system. Featuring a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8” two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity allows you to stream audio from your mobile device. Thanks to 300 watts of power, you’ll have enough volume to be heard loud and clear. Plus, the compact and lightweight form factor makes transportation easy—you can carry the entire system with one hand.

Device Compatibility

BluetoothYes

General Specifications

Dimensions (W × D × H)15.6 x 30.3 x 22.5 in

System TypePortable 2-way full-range loudspeakers with powered mixer

Maximum SPL Output121 dB peak

Frequency Range (-10 dB) 60 Hz - 20 kHz

Frequency Response (+/-3 dB) 70 Hz - 18 kHz

AC Input100-120 V, 220-240 V 50/60 Hz

Amp DesignClass D

System Power Rating300 W (2x 150 W stereo)

Output Connector2 x 1/4" TS (unbalanced) amplifier outputs

Channels1-4 = XLR/1/4" jack combo connectors, 5-6 = one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo), 7-8 = one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack

Phantom PowerCH1 and CH2 have phantom power control and share the same selection switch

Hi-Z SelectionCH3 has a Hi-Z selection switch used for guitar signal input

Treble/Bass EQPer-channel high- and low-shelf filters; +/- 12dB cut and boost

System LimiterOn-board DSP limiting

LF Driver1x JBL 8" (203mm) woofer

HF Driver1x 1" Neodymuim black aluminum dome tweeter

Coverage Pattern100° horizontal x 60° vertical

Crossover Frequency2 kHz

Crossover Type2-way passive network, 2nd order filters (12dB cutoff per octave)

EnclosurePolypropylene

Suspension/Mounting36 mm pole socket

HandlesOne on top

Speaker GrillePowder-coated perforated steel

Shipping Package（HxWxD）22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)

Net Weight 38.8 lbs (17.6 kg)

Audio Specifications

Monitor Outone pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)

Headphone Out3.5mm stereo jack

Subwoofer Out1/4" balanced TRS jack
