Portable hand-held sampler with serious power, originally launched on Kickstarter and now in production. One-touch sampling via a range of inputs, internal sequencer, built-in effects and resampling.
Supplier's Notes:
Easy Sampling
You can easily sample any sounds with the built-in microphone, your microphone or electric guitar connected to the input, or even a USB-connected smartphone or PC / Mac.
You can even sample applying an insert effect. For example, your electric guitar can be added to Distortion or your vocal to Compressor.
Sampled sounds can be quickly assigned to pads with auto-slicing, and can also be edited manually in detail by viewing the waveform display.
Sampled sounds can also be easily matched to the tempo and key of your song.
You can also resample a sequenced phrase of sampled sounds including applied effects.
Flexible Song-making
Each song project has 16 sequential parts called "Scenes". Each Scene has 10 sequencer tracks which can behave in different ways, as described below:
- Loop Track: Sequencer for a looping sample
- Shots Track: Sequencer for a single one-shot sample
- Drum Track: Step sequencer for drums
- Instrument Track: Piano roll type sequencer for musical instruments
- MIDI Track: Piano roll type sequencer for external MIDI equipment
Three additional Global Audio Tracks are available for longer recordings like vocals and external instruments. These tracks can record multiple takes which can be spliced into a final perfect version. Traditional "punch-in" style recording is also supported.
Easily structure a full song by sequencing scenes and setting how many times they repeat before moving to the next scene. You can set the order of scenes via a copy function.
A song can be mixed down through a mastering effect, and be exported to a single audio file or individual audio files (stem files) for each track.
Effortless Music Streaming
You can stream your music in perfect quality with a single USB cable, without any driver installation or troublesome menu settings.
You can livestream your voice and performance in real time while playing along with your song. And they can be controlled with crossfading and mixing with effects.
Massive Sample Libraries
More than 500 high-quality sample sounds are available (for download), so you can start creating a songs right away, even if it's your first time.
Samples you record are stored to the SD card. In Crad Reader mode you can download your recordings, or import new samples from your PC / Mac.
36 types of internal DSP effects can be used as the insert, send, and master effects.
Versatile Connectivity
The SmplTrek can connect to a wide range of audio sources such as, dynamic microphones, electric guitars / bass, synthesizers, and even USB audio sources from PC / MACs or smartphones.
The SmplTrek can output audio via two analog outputs, or digitally via USB for live streaming and direct DAW recording.
It can also synchronize its tempo with other devices using MIDI or audio sync.
Maximum Polyphony:
35 voices
+ LOOP track + SHOT track + DRUM track + INST track: 30 voices
+ GLOBAL audio track: 3 voices (3 mono tracks)
+ USB audio track: 1 voice
+ External source: 1 voice
(DRUM track and INST track have a maximum of 8 voices each track. MIDI track can also output up to 8 notes each track.)
Sampling / Recording:
48kHz-16bit linear
Sampling Time: Maximum sampling time (size) for a single sample is approximately 180 minutes in stereo (2 GB).
Recordable Data: Depend on SD card *SD card sold separately
Data Format: WAV
Resampling, auto-slicing, time-stretching, pitch-changing functions
*SmplITrek requires an SD card for sampling. Supported SD cards are SDHC cards up to 32 GB. (SDXC cards are not supported.)
Sequencer:
Each song project has 16 scenes
1 scene contains 10 sequencer tracks and 3 additional audio tracks
Track Type
Loop Track: Sequencer for a looping sample (Max 10 tracks / project)
Shots Track: Sequencer for a single one-shot sample (Max 10 tracks / project)
Drum Track: Step sequencer for drums (Max 1 track / project)
Instrument Track: Piano roll style sequencer for musical instruments (Max 3 tracks / project)
MIDI Track: Piano roll style sequencer for external MIDI equipment. (Max
10 tracks / project)
Max. number of bars: 128 bars in Scene
Note Length: 1 / 1~1 / 32
Various copy functions
Transpose function
Real-time and non-real-time recording
Metronome, pre-count function
Effects: 36 types (Insert, Send, Master Effects)
Pads: 15 velocity-sensitive pads with RGB LEDs
Controllers: Control knob x 5, Directional pad with 2 button controls
Display: 1.5 inch OLED display
Built-in Mic: Mono x 1 (Omni-directional, 94dBSPL)
Built-in Speaker: Mono x 1 (1.5W 4 O)

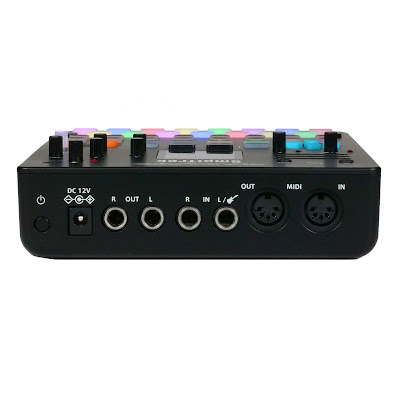

Connectors:
INPUT L / Guitar (Switchable 10kQ and 1MQ impedance) / Dynamic Mic
[LINE Gain] PAD: -20dB
[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB
[MIC Gain] LOW: 0dB, NORMAL: +10dB
INPUT R / Dynamic Microphone
[LINE Gain] PAD: -20dB
[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dB
STEREO LINE OUTPUTS (Max +6.5dBV)
*The above jacks are all balanced 1 / 4" TRS Jack Connectors
PHONES jack (stereo 3.5mm mini jack type)
USB port (micro USB Type-B)
[USB Audio] USB 2.0 Full Speed, 48kHz-16bit
Input: 2 channels, Output: 2 channels
[USB MIDI]
[Mass Storage Class] USB2.0 High Speed
*For iPhone, Apple Lightning to USB Camera Adapter required separately
MIDI IN connector (5-Pin DIN type)
MIDI OUT connector (5-Pin DIN type)
AUDIO SYNC IN jack (mono 3.5mm mini jack type)
AUDIO SYNC OUT jack (mono 3.5mm mini jack type)
SD card slot
DC IN connector
Power Supply:
DC12V output AC adapter (500mA, Inner Diameter: 2.1mm, Outer Diameter: 5.5mm, Polarity: Centre +)
Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
(Alkaline dry batteries life: approx. 4 hours)
*Batteries sold separately
Accessories:
AC Adaptor
Warranty
*SD card, USB cable and the other connection cables sold separately
Size and weight
Width: 147mm | approx. 5.8 inch
Depth: 175mm | approx. 7.8 inch
Height: 46mm | approx. 1.8 inch
Weight: 550g | approx.1 lbs 3.5 oz
| Dimensions (mm) | 147 x 46 x 175 |
| Weight (g) | 550 |
| Maximum Polyphony (voices) | 35 |
| Effects | 36 types (Insert, Send, Master Effects) |
| Step Sequencer | Step sequencer for drums |
| Power | Mains Adapter |
