Saturday, January 30, 2016

Thursday, January 28, 2016

TANNOY Reveal 802 pro dj studio monitor speaker

TANNOY Reveal 802 pro dj studio monitor speaker


General
Frequency Response42 Hz - 43 kHzMax SPL114 dB
Membrane Sizes
LF/Mid Range8" (200 mm)HF1" Soft Dome (25 mm)
Bi-amp Output Power, RMS
Power Output100 WattsLF/Mid Range75 WattsHF25 WattsTHD< 0.4 %
Input Types and Impedances
BalancedXLR, 20 kOhmUnbalanced¼" Jack, 10 kOhmAUX LinkMini Jack, 10 kOhmAUX Link OutputMini Jack
EQ Options
HF EQ Settings-1.5 dB HF Cut / Neutral / +1.5 dB HF BoostCrossover Frequency1.8 kHzLow Frequency AlignmentOptimized Front Port
Cabinet Dimensions
HxWxD, inches15.4 x 10.0 x 11.8HxWxD, mm390 x 254 x 300

TANNOY Reveal 502 pro dj studio monitor speaker

TANNOY Reveal 502 pro dj studio monitor speaker


General
Frequency Response49 Hz -43 kHzMax SPL108 dB
Membrane Sizes
LF/Mid Range5" (130 mm)HF1" Soft Dome (25 mm)
Bi-amp Output Power, RMS
Power Output75 WattsLF/Mid Range50 WattsHF25 WattsTHD< 0.7 %
Input Types and Impedances
BalancedXLR, 20 kOhmUnbalanced¼" Jack, 10 kOhmAUX LinkMini Jack, 10 kOhmAUX Link OutputMini Jack
EQ Options
HF EQ Settings-1.5 dB HF Cut / Neutral / +1.5 dB HF BoostCrossover Frequency2.3 kHzLow Frequency AlignmentOptimized Front Port
Cabinet Dimensions
HxWxD, inches11.8 x 7.2 x 9.4HxWxD, mm300 x 184 x 238

TANNOY Reveal 402 pro dj studio monitor speaker

TANNOY Reveal 402 pro dj studio monitor speaker


General
Frequency Response56 Hz -48 kHzMax SPL101 dB
Membrane Sizes
HF¾˝ Soft Dome (19 mm)LF/Mid Range4” (100 mm)
Bi-amp Output Power, RMS
Power Output50 WattsLF/Mid Range25 WattsHF25 WattsTHD< 0.9 %
Input Types and Impedances
BalancedXLR, 20 kOhmUnbalanced¼" Jack, 10 kOhmAUX LinkMini Jack, 10 kOhmAUX Link OutputMini Jack
EQ Options
HF EQ Settings-1.5 dB HF Cut / Neutral / +1.5 dB HF BoostCrossover Frequency2.8 kHzLow Frequency AlignmentOptimized Front Port
Cabinet Dimensions
HxWxD, inches9.5 x 5.8 x 8.4HxWxD, mm240 x 147 x 212

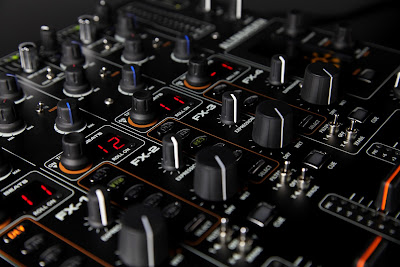

ALLEN AND HEATH XONE:DB4 DIGITAL DJ FX MIXER

ALLEN AND HEATH XONE:DB4 DIGITAL DJ FX MIXER


“A great-sounding mixer which employs all of Allen & Heath’s experience and heritage in this marketplace. Great build quality and a wealth of sound manipulation options make the Xone:DB4 a true contender for Best Club Mixer.”

THE ULTIMATE PROFESSIONAL
CLUB DJ FX MIXER

Xone_DB4_Front_Main

The Xone:DB4 is a truly ground-breaking mixer and by far the most advanced product that we have designed. Every feature has been meticulously researched with a view to offering DJs ultimate creativity.

Based on the iLive pro-touring FX system, we developed FX algorithms with BPM conscious parameters and tight spectral control, customised to perfectly fit the DJ environment. As the loops and FX are automatically synchronised to the tempo of the track, it is very easy to build some amazing grooves and soundscapes without problems of latency, low fidelity and the general hassle often associated with using software and laptops.

The flexible input matrix allows any audio source to be selected on any or all of the channels. Different processing can be applied to the same track on separate channels and you can fade between them, or a phrase sampled in the looper of one channel can be added to the mix later in the track. Our digital design team has done an incredible job to ensure that this is one of the most innovative and exciting DJ mix tools to date.

RB_Xone_Community RB_Xone_Mixed RB_Xone_FB RB_Xone_YT RB_Xone_SC

XONE:DB4 FEATURES

QUAD FX CORE
The heart of the Xone:DB4 is the powerful Quad FX Core DSP engine, enabling each channel to have its own FX bank and BPM detection system, which automatically adjusts all time-related FX and loops to the tempo of the music. There are 5 studio quality FX types optimised for DJ use – delays, reverbs, modulators, resonators and damage – plus each FX type has a patch library of different effect variations. Each FX bank has a dedicated expression control and a rotary pot to set the wet/dry level, whilst further tweaking can be performed using the global controllers in the FX master section.

Xone_DB4_Features_Quad_FX_Core

Xone_DB4_Features_ProXFade

PRO-X-FADER OPTION
Retro-fit Pro-X-Fade option kit for Xone:DB4. Pro-X-Fade uses 100% conductive plastic tracks and a wider stem for extended fader life. Pro-X-Fade also allows the DJ to adjust both the feel of the fader and the cut-in point to suit their personal style. Speak to your approved Allen & Heath dealer or distributor for purchasing and fitting information.

X:LINK
X:LINK uses a standard RJ45 connector and distributes power and data allowing connection to X:LINK compatible devices, saving USB ports on your computer.

DB4_Features_X_Link

Xone_DB4_Features_Looper

LOOPER
Each channel has a built-in looper, with selectable loop length from 1/16 beat to 4 bars. DB4 will always record the full 4 bars, so the loop can be expanded or shrunk at will.

FILTERS
DB4 comes equipped with the Xone dual filter system.

Xone_DB4_Features_Filters

DB4_Features_Input_Matrix

SOURCE SELECT
Each music channel can select any of the available stereo music sources: Analogue Line 1-4 (switchable to Phono on 2-3), Digital 1-4 or USB 1-4.

EQ/FILTER
Each music channel has a 3-band EQ that can be configured as standard asymmetric EQ (+6/-26dB), Isolator (+6dB/OFF with a 24dB/octave slope), or reconfigured as a High-Pass/Low-Pass filter system with adjustable resonance. EQ knob pointers change colour to show which type of equalization is active.

Xone_DB4_Features_EQ

Xone_DB4_Features_Mic

MIC/LINE INPUT
The Mic/Line input has 2-band EQ, gain, cue and mix level. This can also be routed to all main input channels overriding Matrix analogue input channel 1 for adding FX and accessing the loopers.

INTEGRAL SOUNDCARD
A built-in, high quality (24-bit / 96kHz), multi-channel, fully patchable USB2 soundcard allows replay and recording from audio software for 4 stereo sends and 4 stereo returns.

Xone_DB4_Features_Integral_Soundcard

Xone_DB4_Features_USB

USB
User-defined settings such as meter mode, BPM range, USB audio routing scheme and display brightness can be saved to a USB key for recall on another DB4.

MIDI CONTROL
All controls (except Mic and Phones level) send MIDI data and the mixer can double up as a MIDI controller via the MIDI shift button, allowing the Loop and FX selection controls to send MIDI data without changing the mixer settings. DB4 can generate internal MIDI clock which can be used to control the tempo of a connected DAW via USB and the ability to change the mixers MIDI channel.

Xone_DB4_Features_MIDI

Xone_DB4_Features_Output_Patchbay

OUTPUT PATCHBAY
Booth, record and phones – source selectable and level trim. Booth and main – phase and level trim controls.

HIGH VISIBILITY DISPLAY
The OLED display is clearly visible, even in bright sunlight, and displays channel FX selection and current BPM, as well as being an easy interface for the Menu setup functions.

LIGHTWEIGHT CHASSIS
DB4’s lightweight aluminium chassis is designed to make touring with the console easy.

ALLEN AND HEATH XONE:DB2 PROFESSIONAL DJ FX MIXER

ALLEN AND HEATH XONE:DB2 PROFESSIONAL DJ FX MIXER


“The DB2 is a great-sounding mixer with some great features, at a cost. But if you don’t love the feel of this mixer, we will eat our headphones!”

The Xone:DB range exploits the potential of digital mixer technology to bring you maximum DJ creativity. Flexible and versatile mixer controls with an intuitive layout give the DJ full control over the mix.

The DB2 boasts twin chainable FX engines, four stereo channels, full Input matrix, and unique Trimodal EQ system. With its built in USB soundcard, MIDI control, Xone Filters and X:LINK connectivity, the Xone:DB2 unleashes the DJ’s creativity. The Xone:DB2 captures the essence of DB4 in a stylish, accessible, affordable format and blurs the boundaries between DJing, production and performance for the next generation.

RB_Xone_Community RB_Xone_Mixed RB_Xone_FB RB_Xone_YT RB_Xone_SC

XONE:DB2 FEATURES

MASSIVE FX LIBRARY
Boasting a massive FX library of more than 50 FX presets divided into 5 FX types: Delays/loopers, Reverbs, Resonators, Modulators and Damage, Xone:DB2 allows you to dig deep and get hands-on with your music. From subtle FX washes to total transformation of your sound – you’re in control.

Xone_DB2_FX_Library

Xone_DB2_FX_Cascade

FX CASCADE
The two FX engines can be cascaded, or chained, to run the output of FX-X to the input of the FX-Y, allowing the audio to be processed by any combination of two different effects. Additionally any channel routed to FX-X can be processed by both engines, but the single effect on the FX-Y engine can still be accessed by routing the channel to Y.

EDITABLE FX PARAMETERS
Each FX engine has a dedicated expression control and a rotary pot to set the wet/dry level, whilst further tweaking can be performed using the global controllers under the screen.

Xone_DB2_FX_Parameters

Xone_DB2_Input_Matrix

INPUT MATRIX
Each of DB2’s four input channels has a full input matrix that can select from four analogue (Line or RIAA), four USB, or two digital sources, allowing for a wide variety of audio sources to be connected simultaneously. The same source can also be selected on multiple channels.

TRIMODAL EQ
Xone:DB2 adopts the fresh approach to creative equalisation introduced on DB4. The EQs can be used in three different modes – standard asymmetric EQ (+6/-26dB), total Kill (+6dB/OFF with a 24dB/octave slope), or High-Pass/Low-Pass filter with adjustable resonance.

Xone_DB2_Trimodal_EQ

Xone_DB2_Features_Mic_Line

MIC/LINE INPUT
With 2 band EQ, gain, cue and mix level and with full access to FX.

HIGH VISIBILITY OLED DISPLAY
The OLED display is clearly visible, even in bright sunlight, and displays channel FX selection and current BPM, as well as being an easy interface for the Menu setup functions.

Xone_DB2_OLED

Xone_DB2_Lightweight_Chassis

LIGHTWEIGHT CHASSIS
DB2’s lightweight aluminium chassis is designed to make touring with the console easy.

INTEGRAL SOUNDCARD
The built-in, multi-channel USB2 soundcard allows replay and recording from computer-based audio software for 4 stereo sends and 4 stereo returns.

Xone_DB2_Features_Integral_Soundcard

Xone_DB2_MIDI

MIDI CONTROL
All controls (except Mic and Phones level) send MIDI data. The mixer can double up as a MIDI controller for DJ software via the MIDI shift button, which allows the FX selection controls to send MIDI data without changing the mixer settings. DB2 can generate internal MIDI clock which can be used to control the tempo of a connected DAW via USB and the ability to change the mixers MIDI channel.

X:LINK
X:LINK uses a standard RJ45 connector and distributes power and data, allowing connection to X:LINK compatible devices, saving USB ports on your computer.

Xone_DB2_X_Link

Xone_DB2_Spatial_Xover

SPATIAL XOVER
Useful output processing tool for dealing with poor room acoustics, less than ideal speaker placement, as a diagnostic tool for phase imbalance, or as an effect to change the bass sound focus.

PRO-X-FADER OPTION
Retro-fit Pro-X-Fade option kit for Xone:DB2. Pro-X-Fade uses 100% conductive plastic tracks and a wider stem for extended fader life. Pro-X-Fade also allows the DJ to adjust both the feel of the fader and the cut-in point to suit their personal style. Speak to your approved Allen & Heath dealer or distributor for purchasing and fitting information.

ALLEN AND HEATH XONE:92 PROFESSIONAL 6 CHANNEL CLUB/DJ MIXER

ALLEN AND HEATH XONE:92 PROFESSIONAL 6 CHANNEL CLUB/DJ MIXER


The industry-standard Xone:92 is a versatile six channel analogue mixer, renowned for its expansive, involving sound. With its solid construction and easy to use interface, the 92 is on the riders of most of the world’s top DJs and is a permanent fixture in the booth at many of the biggest superclubs.

The Xone:92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters. With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ’s dream tool.

For those who prefer to blend with rotary faders the Xone:92R is also available.

RB_Xone_Community RB_Xone_Mixed RB_Xone_FB RB_Xone_YT RB_Xone_SC

FEATURE SUMMARY

6 dual stereo channels – 4 phono/line, 2 mono/mic or stereo return
2 independent stereo mix outputs
2 aux sends for output to external FX units
VCF system – 2 independent stereo filters with frequency and resonance controls
2 independent LFO’s for filter manipulation
4-band EQ – total kill on HF and LF, wide Q for cut, narrow Q for boost
Booth output – dedicated output on TRS jack
MIDI values can be output from 6 controls (e.g. crossfader, LFO)
Illuminated lightpipes showing status of performance controls
Intelligent cue for pre or post EQ monitoring
Monitor section includes post EQ switch, split cue and mix to cue balance
2 headphone outputs (1/4” and 3.5mm)
Ducking control on mono/mic channel

ALLEN AND HEATH XONE:62 PROFESSIONAL 6 CHANNEL CLUB/DJ MIXER

ALLEN AND HEATH XONE:62 PROFESSIONAL 6 CHANNEL CLUB/DJ MIXER


Xone:62 is a classic favourite renowned for superb audio quality, phenomenal VCF filters and creative 4-band EQ. The 6 dual stereo inputs, clear layout and ease of use quickly established the Xone:62 as the mixer of choice for many of the world’s greatest DJs and club installs. If you need dependability and a sound that will elevate your mixes to the next level, get the Xone:62.

FEATURE SUMMARY

6 dual stereo inputs, 2 with mic inputs
Stereo aux send with pre/post switching
VCF system – 2 independent stereo filters with frequency and resonance controls
4-band EQ with +6dB and -26dB cut
P&G easy change professional VCA crossfader
Monitor section – independent per-channel cue selection, split cue and aux
Mix outputs on balanced XLR
Independent booth output
Stereo recording output
Desk, custom rack or 19” rack mount
High performance internal switch-mode power supply

ALLEN AND HEATH XONE:43 4 CHANNEL ANALOGUE DJ MIXER

ALLEN AND HEATH XONE:43 4 CHANNEL ANALOGUE DJ MIXER


Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

FEATURES

• 4 channels with phono/line inputs
• VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
• 3-band EQ
• External FX loop (Send/Return) system with dry/wet control per channel
• Mic input on balanced XLR, with 2-band EQ
• Balanced main mix out on XLR
• Independent booth out
• Record out
• 3.5mm and 1/4″ headphone outputs
• Touring grade build quality
• Super smooth VCA channel faders
• User changeable crossfader
• Innofader compatible
• Crossfader curve switch
• 20dB pro standard headroom
• 9-segment signal level monitoring

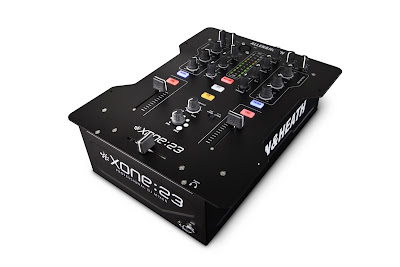

ALLEN AND HEATH XONE:23 2+2 channel DJ mixer

ALLEN AND HEATH XONE:23 2+2 channel DJ mixer


HIGH PERFORMANCE 2+2 CHANNEL DJ MIXER
Xone:23 is a 2+2 channel DJ mixer packed with pro features that would normally be found in the booth of a top-rated club, including an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.

FEATURES

2+2 channels with dual phono/line inputs
VCF Filter system – low-pass + high-pass filters plus frequency and resonance controls
3-band true total kill EQ
External FX loop
Mic input on balanced XLR, with 2-band EQ
Balanced main mix out on XLR
Independent booth out
Record out
3.5mm and 1/4″ headphone outputs

Touring grade build quality
Super smooth VCA channel faders
User changeable crossfader
Innofader compatible
Crossfader curve switch
20dB pro standard headroom
Ultra low distortion
2mm Steel face plate
9-segment signal level monitoring

Tuesday, January 26, 2016

AUDIO TECHNICA AT2020 Cardioid USB Condenser Microphone

AUDIO TECHNICA AT2020 Cardioid USB Condenser Microphone



Audio-Technica’s stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

The price/performance standard in side-address studio condenser microphone technology

Ideal for project/home-studio applications

High SPL handling and wide dynamic range provide unmatched versatility

Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response

Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY –37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE 20 dB SPL
DYNAMIC RANGE (typical) 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 2 mA typical
WEIGHT 12.1 oz (345 g)
DIMENSIONS 6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE R7

AUDIO TECHNICA ATR2500-USB Cardioid Condenser USB Microphone

AUDIO TECHNICA ATR2500-USB Cardioid Condenser USB Microphone


Ideal for podcasting, home studio recording, field recording, and voiceover use, the ATR2500-USB plugs right into your computer’s USB port, and functions seamlessly with your favorite recording software. This large-diaphragm side-address condenser offers a USB output for recording to your computer, a quality analog-to-digital converter for excellent fidelity, and a headphone output with level control for monitoring. Its cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear.

Side-address condenser microphone with USB output for easy connection to your computer

Ideal for podcasting, home studio recording, field recording, and voiceover use

Built-in headphone jack allows you to directly monitor from your microphone

Adjust headphone volume with easy-to-use controls on the front of the microphone

High-quality AD convertor with 16 bit, 44.1/48 kHz sampling rate

Compatible with Windows and Mac

Low-mass diaphragm provides excellent frequency response

Cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear, improving isolation of desired sound source

Low self-noise – ideally suited for digital recording equipment

Pivoting, threaded stand mount attaches securely to the supplied tripod or to a conventional microphone stand

Tripod desk stand with folding legs for secure and easily portable tabletop use

Durable metal construction for long-lasting performance

USB cable included

ELEMENT Condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30 – 15,000 Hz
POWER REQUIREMENTS USB Power (5V DC)
BIT DEPTH 16 bit
SAMPLE RATE 44.1 kHz/48 kHz
VOLUME CONTROL Headphone volume controlled by up/down buttons
WEIGHT 366 g (12.9 oz)
DIMENSIONS 155.0 mm (6.10") long,
50.0 mm (1.97") maximum body diameter
OUTPUT CONNECTOR USB-type
HEADPHONE OUTPUT POWER 10 mW @ 16 ohms
HEADPHONE JACK 3.5 mm TRS (stereo)
ACCESSORIES FURNISHED Pivoting stand mount for 5/8"-27 threaded stands; tripod desk stand; 1.8 m (5.9') mini USB cable

AUDIO TECHNICA AT2005USB Cardioid Dynamic USB/XLR Microphone

AUDIO TECHNICA AT2005USB Cardioid Dynamic USB/XLR Microphone


Building on the heritage of the renowned 20 Series line of studio microphones, Audio-Technica’s new AT2005USB is an all-purpose microphone designed to take you from the stage to the studio and beyond. This rugged handheld microphone offers two outputs, USB output for digital recording, and an XLR output that connects with a sound system’s conventional microphone input for use in live performance. The microphone plugs right into your computer’s USB port, and functions seamlessly with your favorite recording software.

The AT2005USB also offers a quality analog-to-digital converter for excellent fidelity, and a headphone output with level control for monitoring. Its cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear. The microphone is ideal for live performance, podcasting, home studio recording, field recording, and voiceover use.

Handheld dynamic microphone with USB digital output and XLR analog output

USB output connects to your computer for digital recording, while the XLR output connects with your sound system’s conventional microphone input for use in live performance

Smooth, extended frequency response ideally suited for podcasting, home studio recording, field recording, voiceover, and on-stage use

Built-in headphone jack allows you to directly monitor from your microphone

Adjust headphone volume with easy-to-use controls on the bottom of the microphone

High-quality AD convertor with 16 Bit, 44.1/48 kHz sampling rate

Compatible with Windows and Mac

Low-mass diaphragm provides excellent frequency response

Cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear, improving isolation of desired sound source

Tripod desk stand with folding legs for secure and easily portable tabletop use

Threaded stand clamp attaches securely to the supplied tripod or to a conventional microphone stand

USB and XLR cables included

Durable metal construction for long-lasting performance

On/off switch functions for both USB and analog operation

ELEMENT Dynamic
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 50-15,000 Hz
POWER REQUIREMENTS USB Power (5V DC)
BIT DEPTH 16 bit
SAMPLE RATE 44.1 kHz/48 kHz
CONTROLS On/off Switch;
Headphone Volume Control
WEIGHT 266 g (9.4 oz)
DIMENSIONS 183.6 mm (7.23") long,
51.0 mm (2.01") maximum body diameter
OUTPUT CONNECTOR USB-type/XLR-type
HEADPHONE OUTPUT POWER 10 mW at 16 ohms
HEADPHONE JACK 3.5 mm TRS (stereo)
SYSTEM REQUIREMENTS Macintosh: MAC OS X; USB 1.0 or 2.0; 64 MB RAM (minimum)

Windows: XP/Vista/Windows 7; USB 1.0 or 2.0; 64 MB RAM (minimum)
ACCESSORIES FURNISHED Stand clamp for 5/8"-27 threaded stands; tripod desk stand; 6.6' (2 m) mini USB cable, 9.8' (3 m) XLRF-type to XLRM-type cable
AUDIO-TECHNICA CASE STYLE T7

Wednesday, January 20, 2016

Pioneer XDJ 700 Rekordbox Compact Digital Deck Player [ Available in store coming February 2016 ]

Pioneer XDJ 700 Rekordbox Compact Digital Deck Player [ Available in store coming February 2016 ]


COMPACT SIZE, GREAT FEATURES.
The XDJ-700 comes with a large touchscreen, a familiar club layout and it inherits a host of features from its big brother, the XDJ-1000. Its compact size and removable stand offer great set-up possibilities for even the smallest booth or home set-up.

With support for our free rekordbox™ software you can prepare and manage your tracks on a PC or Mac before hitting the booth.

KEY FEATURES
LARGE TOUCH SCREEN
The 7-inch, full-colour LCD touch screen gives you instinctive control for ultimate creativity. The GUI is divided into three sections so you can effortlessly access all the features you need.

FASTER BROWSING
The Browse function allows you to call up a Qwerty keyboard and search for keywords. It also lets you choose how you view your tracks: list, artwork or custom view.

HOT CUES
Trigger Hot Cues and Hot Loops in perfect time.

BEAT PERFECT
Quantize snaps cues and loops to the rekordbox beat grid. This enables a reliable performance without breaking the rhythm of your music during playback.

MORE CREATIVE FREEDOM
Automatically beatmatch up to 4 playing decks.
Works with music that has been beat-analysed by rekordbox™

SLIP MODE
Keep tracks playing muted during live edits such as loop, scratch or reverse. Release the jog wheel and the track comes back at exactly the right place.

Enhanced view
The large, full-colour LCD display shows all the info you need, including Wave Zoom, beat countdown, phase meter, key analysis indicator and more.

Advanced connectivity
With ProDJ Link you can connect up to 4 players, turntables or laptops via LAN connection and share a single source. Combine this with rekordbox to access pre-prepared loops and cues, sync the beat with the master deck, and access a host of advanced pro-DJ features.

Let's get digital
Simply plug in your rekordbox USB or connect your iPhone, iPod touch or Android smartphone to load tracks directly to the XDJ. Get access to a multitude of advanced performance features when preparing your tracks in rekordbox or using the rekordbox app.

Compact design
The XDJ-700 offers DJs and venues unparalleled set-up possibilities. Being our slimmest player yet, it has been designed with the small booth or home set-up in mind. A removable stand helps it to fit into even smaller spaces.

MIDI compatible
Fully assignable MIDI functionality via USB can transmit most control information to external devices and can also be used as a MIDI controller.

Main Features
Plays
AAC
AIFF
MP3
WAV
iOS version of rekordbox: MP3 and AAC only
MIDI Control
Yes
ProDJ Link
Yes
KUVO ready
Yes
Auto Standby
Yes
rekordbox
Yes
Specifications
Width
238 mm
Height
106 mm
Depth
308 mm
Weight
2 kg
Frequency Range
4 - 20,000 Hz
Signal-to-Noise Ratio
> 115 dB (JEITA)
Distortion
< 0.003 % (JEITA)
Audio Output Level
2.0 Vrms (1 kHz, 0 dB)
Power Consumption
21 W
Power Requirements
AC Adapter 100-240 V, rated output 12 V DC
Display
Display
7-inch, full-colour LCD touchscreen
Playing Address
Yes
Wave Zoom Display
Yes
Phase Meter
Yes
Beat Counter
Yes
On Jog Display
Yes
Performance Control
Jog Dial size
206 mm
Jog Modes
CDJ / Vinyl Mode
Hot Cue
Yes
Hot Loop
Yes
Active Loop
Yes
Auto Beat Loop
Yes
Reloop
Yes
Real Time Seamless Loop
Yes
Loop Adjust
In / Out Adjust
Slip Mode
Yes
Beat Sync
Yes
Reverse
Yes
Pitch Bend
Yes
Fader Start / Back Cue start
Yes
Scratch Play / Cue
Yes
Quick Scratch
After searching track
Relay Play
Yes
Frame Search
1/75 s
Needle Search / Needle Drop
Yes
Vinyl Speed Adjust
Yes
Cue Functions
Auto Cue
Yes
Manual Cue
Yes
Real Time Cue
Yes
Cue point sampler
Yes
Cue Loop Memory
Yes
Tempo
Master Tempo
Yes
Tempo Control steps
0.02 % at +/-6 %
0.05 % at +/- 10 % & 16 %
0.5 % at WIDE
Tempo Control Ranges MP3
+/-16 %
+/-10 %
+/-6 %
BPM Counter
Yes
Terminals
Audio Sources
Computers (Mac/Windows PC)
iPhone/iPad/iPod touch, Android phones/Android Tablets
USB storage devices (flash memory/HDD, etc.)
Outputs
1 ANALOGUE (RCA)
1 CONTROL (Mini-jack)
LAN
1 (100Base-TX)
USB
1 USB A port
1 USB B port
