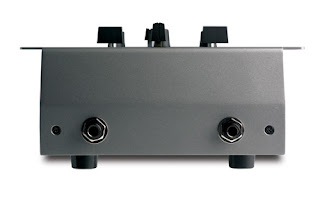

Numark M1 Compact Scratch Mixer

Numark M1 Compact Scratch Mixer


M1 is a compact, two-channel scratch mixer that is perfect for any DJ who needs to take maximum advantage of limited space. You can plug in turntables, CD players, and any other line-level music source, as well as a microphone.

You can set the level of each channel of M1 with trim and line faders, and then tailor the high and low frequencies with the rotary EQs on each channel. Preview using the cue mini-crossfader and headphone output, and then mix with the replaceable crossfader.

M1 has all the features you need to get maximum performance out of minimum space.

* Two-channel compact-tabletop mixer
* Inputs: two phono (RCA), two line (RCA), mic (1/4")
* Outputs: Master (RCA), Headphone (1/4" stereo)
* Rotary EQ and gain on each channel
* Replaceable crossfader
* Mini-crossfader cueing


* Line: 18K ohm input impedance; 200mV rms sensitivity for 4V output
* Mic: 3K ohm input impedance unbalanced; 2mV rms sensitivity for 4V output; 20mV rms max input
* Phono: 47K ohm input impedance; 3mV rms sensitivity @ 1KHz for 4V output


* Master: 8V rms max
* Headphone: 125mW into 32 ohm

Distortion: less than 0.1%

S/N Ratio (maximum output JIS-A weighted):

* Line: Better than -90dB
* Mic: Better than -59dB
* Phono: Better than -65dB

Frequency response:

* Line: 20Hz-20KHz +/-3dB
* Mic: 20Hz-20KHz +/-3, -1/-7dB
* Phono: ±3dB with -10dB attenuation at 10Hz to reduce rumble and feedback

Channel equalizer:

* Bass: +12/-18 ±3dB @100Hz
* Treble: +13/-21.5 ±3dB@10KHz


* Dimensions (W x D x H): 197mm x 267.5mm x 100mm
* Power consumption: 5 Watt typical; 8 Watt with full headphone output
* Weight: 2.4kgs (incl. Transformer)
