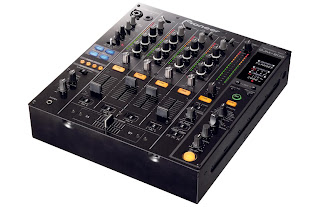

Pioneer DJM-800 DJ Mixers

Pioneer DJM-800 DJ Mixers

A powerful 4 channel 96kHz/24 bit digital mixer offering DJs first class sonic fidelity, immense connectivity including 61 fully assignable MIDI controls, and a full range of effects with additional innovative new ‘sound color effects’ across all channels.

Audio Input

  • Sampling rate: 96kHz
  • A/D, D/A converter: 24-bit
  • Frequency response: 20Hz - 20kHz
  • Total harmonic distortion: 0.005% or less
  • Signal-to-noise ratio: 105dB (LINE)
  • Head room: 19dB
  • Output terminals: MASTER OUT x2 (RCA x1, XLR x1),
  • MONITOR OUT x1 (TOP PANEL 1/4”), REC OUT x1 (RCA), DIGITAL OUT x1 (coaxial S/PDIF)

  • Unparalleled sound quality
  • 4 digital inputs and digital output
  • 61 assignable MIDI triggers
  • New onboard multi-effects syncable to BPM
  • New color effects
  • Optional rotary knob kit for a smooth mix

  • Power requirements: AC 110-240V, 50/60Hz
  • Power consumption: 32W
  • Weight: 8 KG
  • Dimensions: 320(W) x 381(D) x 108(H) mm
Audio Output

Input terminal: CD/LINE x5 (RCA), PHONO x3 (RCA), DIGITAL IN x4 (coaxial S/PDIF), MIC x2 (XLR/1/4” combo x1, 1/4” x1)

Other Terminals

  • SEND x1, RETURN x1 (1/4”)
  • MIDI OUT x1 (5-pin DIN)
  • Control terminal: 1/8” mini-jack
