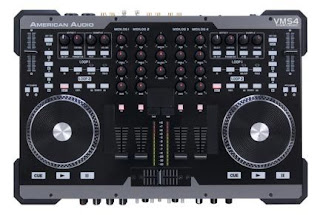

American Audio VMS4 Digital DJ Controller W/Virtual DJ Software

American Audio VMS4 Digital DJ Controller W/Virtual DJ Software

The VMS4 (Velocity MIDI station) is a 4-Channel “MIDILOG™” controller that fuses both Midi (Midi software) and analog audio control (CD Players, turntables etc.) into one unit. The VMS4 is an open source controller that can be used with any Midi audio software titles (with Midi Learn feature) via it’s built-in USB port. The solid workmanship of the VMS4 makes it durable for the demanding mobile or club professional.

The VMS4 features American Audio’s signature “Velocity” touch-sensitive jog wheels, a full-function mouse pad, Midi assignable touch strips and high-quality channel and crossfaders.

This all-in-one unit has all the features found on top-of-the-line professional mixer as well, such as: Balanced XLR outputs, Gain, Treble, Mid and Bass for each Midilog™ channel, crossfader assign and curve, and 2 Microphone Inputs with Treble, Mid and Bass control.

American Audio VMS4 Controller W/ Audio IO

4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
2x Mics with Gain, Treble, Mid & Bass Control
Crossfader Curve Adjustment
Balanced XLR Outputs
Assignable Touch Strips
Built-in Mouse Pad
Built-in Soundcard
Bundled with Virtual DJ LE Software

General Features:

Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
On/Off soft startup and turnoff
Gain/treble/mid/bass EQ on all MIDILOGTM channels
2 phono/line selectable analog channels
Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
On/off cueing on each MIDILOGTM channel
Split cueing headphones with rotary mix control
Illuminated rubber knobs for ease of use in dark environments
Solid 1.6mm thick faceplate for extra durability
Panel mounted rotary knobs
Full analog mixer operation if the computer crashes or with external power supply
Innofader replaceable crossfader compatible (sold separately)
Crossfader curve control
Crossfader assign and reverse
Q-Start crossfader controlled startup for 2 external audio players
User replaceable channel faders
Master and Booth outputs with L/R balance
Balanced Master outputs
12 position stereo master output VU meter
Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
Weight: 13 lbs. / 6 kg.

Midi Features:

Built-in mouse pad
Long life MIDI assignable touch strips
Two 10- bit resolution pitch sliders
62 assignable MIDI buttons and switches
50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
4 assignable rotary encoders
34 assignable rotary controllers
5 assignable linear fader controllers
Dual MIDI controls on all buttons and switches
Dual 2000 point resolution touch sensitive turntable scratch controllers

Audio Features:

24-bit 48 kHz analog audio
16-bit 44.1kHz USB audio
10-bit resolution on all analog fader controls
THD <0.1%*
Channel separation >60dB*
S/N ratio >85dB*
Analog channel audio latency < 1msec
Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
2 msec response on all buttons
4 msec response on all rotary and linear faders
1 msec USB latency

* For each audio channel, both line and phono mode
