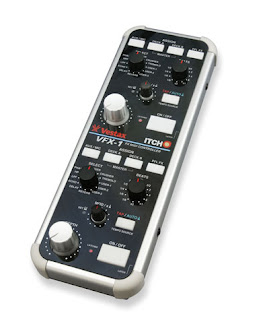

Vestax VFX-1












Vestax VFX-1

The long awaited effect controller for VCI-300+ITCH

The long awaited effect controller for VCI-300+ITCH, the VFX-1. An effect control unit which brings out the best in Djing with the DJ MIDI controller VCI-300+ITCH. 2 individual effect channels with 12 effects each, along with 3 control knobs to control the parameters for each effect.

ITCH Screen New Version
The VFX-1 only requires simple USB connection with your computer and runs with the power provided.
Connecting the VCI-300 and VFX-1 together will activate the effect unit of serato ITCH. Special settings or any installation is not needed.
※You must download the newest software.

FEATURES
-2 separate effect channels.
-Large rotary knob for precise parameter control and feel.
-Selectable effect ON/OFF mode (Momentary & Latch).
-Tireless soft touch buttons.
-Compatible with all other ITCH controller products.

FUNCTIONS

<EFFECTS>

12 selectable DJ effects:

FLANGER・PHASER・ HPF・ LPF・ ECHO
DELAY REVERB・CRUSHER・TREMOLO
USER-1・USER-2・USER-3

<EFFECT ASSIGN>

Each effect channel can be fed in to deck A, deck B and AUX/MIC.

<EFFECT PARAMETER>

A maximum of 3 parameters are adjustable for each effect. Adjusting each parameter enables skillful and detailed DJ play.

<BEATS>

The BEATS knob instantly sets the beat ratio of the effect time in sync with the songs BPM (beats per minute).

<TAP/AUTO>

On the spot BPM control with Manual (TAP) and automatic (AUTO) BPM detection.

<LARGE CONTROL KNOB>

Quality large size rotary knobs applied for precise parameter control

<ON/OFF Switch>

Long set friendly tireless soft touch switches. The effect ON/OFF switch's function mode can be selected from Momentary mode and Latch mode.
MOMENTARY : Effect applied while the switch is
pushed down.
LATCH : Effect applied when the switch is pushed. Cancelled when pushed again.

MINIMUM SYSTEM REQUIREMENTS
a)OPERATING SYSTEM

Windows
Windows XP : SP2 or higher

Windows Vista : SP1 or higher 32bit and 64bit is supported
*Update to ITCH ver.1.5 or higher

Windows7 : 32bit and 64bit is supported
*Update to ITCH ver.1.5 or higher

Macintosh
Mac OS 10.4.11 or higher

b)HARDWARE

Windows
CPU:Intel Processor, Pentium4 mobile2GHz or better
RAM:1GB or higher
1024×768 screen resolution
Hard disk space for music
USB Port:USB Port: Available USB port

Macintosh
CPU:Intel Processor, Intel Core Duo 1.6GHz or better
RAM:1GB or higher
1024×768 screen resolution
Hard disk space for music
USB Port:USB Port: Available USB port

SPECIFICATIONS

Dimensions:98(W)×38(H)×276(D)mm (knobs not included)
____98(W)×50(H)×276(D)mm (including knob height)
Weigt:0.8 kg
Power/Voltage:5V 150mA
Power:USB bus power
