Vestax PMC-05ProIV BLK NEW COLOR!!






Vestax PMC-05ProIV BLK NEW COLOR!!

A NEW DECADE!!

The Vestax 05 series is a mixer of history within the DJ industry. Every 05 model has played its roll in the DJ scene and is one of the most influential DJ mixers in the world.
The latest of the series, PMC-05ProIV is at the pinnacle of DJ mixer technology.Fused with MIDI functions, professional sound quality, signature 3 band isolators and a digital crossfader, the PMC-05ProIV brings you the future.

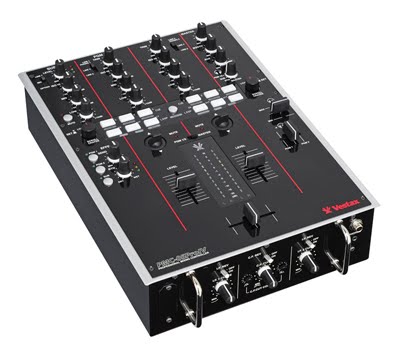

Added to the family is the new Black PMC-05ProIV BLK, with new silk layout.

*Functions, designs and system requirements are subject to change without notice.

CF-X2 digital non-contact magnetic fader with adjustable cut lag sensitivity.
MIDI compatible with various DJ software to enable the DJ mix without operating keyboards.
High quality 3 BAND ISOLATOR.
Carefully designed control layout to pursuit operability.
Multiple in/out connection: XLR out, PGM THRU in, PHONO/LINE select switch, 1/4inch booth out.
MUTE LED indicator for ON/OFF status.
Extensive inputs and outputs meeting all professional demands. (MIC / LINE / AUX/ XLR OUT, PGM THRU IN, PHONO/LINE select switch, 1/4inch booth out)

*Design of the product and information in this document is subject to change without notice.

INPUT SECTION LINE IN (RCA) x 7 (-10dBv/10kΩ)
PHONO IN (RCA) x 2, (-42dBv/40kΩ)
MIC IN (φ6.3PHONE / Canon) x 1(-50dBv/3.3kΩ)
PGM 1 THRU IN(FROM BOX) x 1,
PGM 2 THRU IN(FROM BOX) x 1,
EFFECT RTN (RCA) x 1 (-10dBv/10kΩ)
OUTPUT SECTION MASTER OUT(XLR) x 1, MASTER OUT(RCA) x 1 (0dBv/440Ω)
BOOTH OUT(φ6.3PHONE) x 1 (0dBv/220Ω)
PGM 1 THRU OUT(TO BOX) x 1,
PGM 2 THRU OUT(TO BOX) x 1,
EFFECT SEND (RCA) x 1,
HEADPHONE OUT (φ6.3PHONE) x 1 (100mW(47kΩ)/>8Ω)
HEADPHONE OUT (MINI) x 1 (100mW(47kΩ)/>8Ω)
EQ PGM 1 & PGM 2 : 3 BAND ISOLATOR,
MIC CH / AUX : 3 Band EQ
FREQUENCY RESPONSE 25Hz~25kHz
CROSSTALK ≧80dB
S/N RAIO ≧68dB
DIMENSION(W×H×D) / WEIGHT 263(W) x 83(105 including knob)(H) x 330(D)mm / 4.5kg
POWER AC-14
