Akai MPC1000 Sampling Production Station

Akai MPC1000 Sampling Production Station


MPC1000 inherits all of the essential MPC features such as 32-voice stereo sampling, 64-track sequencing, and 16 velocity and pressure-sensitive MPC pads, fitting all the production capability into a compact, affordable package. 16MB of on-board memory comes standard and can be expanded up to 128MB. You can save your work to a Standard Compact Flash Card (up to 2GB). A preloaded CF card with popular Akai Pro samples is included to get you going.

When connected to a Mac or PC via its built-in USB port, you can simply drag and drop data between the computer and MPC1000's CF card. MPC1000 is small, rugged and incredibly portable for an easy fit into a backpack or laptop bag for the traveling producer.

* Pattern-based and linear 64-track sequencer with 32 MIDI channels
* 32-voice drum/phrase sampler with up to 128MB RAM
* Velocity and pressure-sensitive pads for expressive programming
* 16-level pad function maps one sound to all pads with varied level, tuning, attack, decay or filter per pad
* Two Q-link sliders for real-time performance control
* Built-in Compact Flash drive and USB port (Mass Storage Class)
* Standard WAV files samples and MIDI-file sequences
* Analog and digital I/Os, headphone output and two MIDI In/Out
* Internal sounds in flash
* Four-way sample layering and velocity switching per pad
* Four-pole filters (two two-pole filters) filtering for each of the 32 voices
* Two on-board effects processors plus main-output effect processor, all which can be used simultaneously
* Outputs can be re-sampled

Storage: Compact Flash: Type-II, support up to 2GB card
Hard Drive (optional - req. HDM-10): any standard IDE 2.5" hard drive
Memory: 16MB installed

(Can be expanded to 128MB with EXM-128)

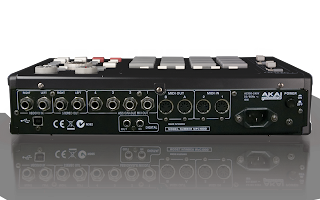

Analog Input/Output:

* (2) Balanced 1/4" Inputs
* (6) Unbalanced 1/4" Outputs [Stereo L/R + 4 Assignable Outs]
* (1) Headphone Output

Digital Input/Output:

* (1) Coaxial S/PDIF Input [RCA]
* (1) Coaxial S/PDIF Output [RCA]

MIDI Input/Output:

* (2) MIDI Input [5-pin DIN]
* (2) MIDI Output [5-pin DIN]

Other Input/Output:

* (2) 1/4" Footswitch
* (1) USB [Slave only]


* Analog Input = +10dBu
* Analog Output = +17dBu [Stereo & Assignable Outs]

Sampler Resolution: 16bit/44.1kHz
Sampler Recording Time:

* 136sec [16MB/MONO]
* 24min 28sec [128MB/MONO]

Sequencer Details:

* 100,000 notes resolving at 96ppq
* 99 Sequences with total 64 tracks per seq
* 20 Songs with total 250 steps per song

Pad Details:

* 16 (velocity and pressure sensitive)
* 4 Pad Banks [A, B, C, D]

Synchronization: MIDI Clock only
Power Options:

* 100v - 240v
* 50/60Hz
* 19W

Dimensions (W x H x D):

* 13" x 2.97" x 8.98"
* 330mm x 75.5mm x 228.2mm

Weight (net):

* 7.6 lbs
* 3.45 kg

Data Compatibility:

* MPC2000/2000XL SEQ (saved as MID file only), WAV, SND, PGM (Most parameters of PGM file can be loaded.)
* MPC4000 SEQ (saved as MID file only), WAV, AKP (DRUM program only...No Keygroups. Only note assign and tune are loaded.)
* MPC3000 SND (THRU Computer)
* Z4/Z8 WAV, PGM (DRUM program only. Only note assign and tune are loaded.)
* S5000/6000 WAV only (THRU Computer)
* S1000/3000 No compatibility
