QSC K Series KSub Dual 12" Active Subwoofer




QSC K Series KSub Dual 12" Active Subwoofer

Features
Lightweight portable powered speakers with legendary QSC amplifier power and reliability
1000 watt continuous Class D power module
Extensive DSP enhances system performance
Attractive and professional appearance
Rugged birch plywood enclosure
Tour-grade 18 gauge steel grilles
Comfortable ergonomic handles
Threaded pole socket with speaker pole included
The KSub is a dual-12" bandpass design, constructed of premium birch and includes high-quality, low-noise casters. The subwoofer features a threaded pole receptacle for a positive, wobble free connection to a threaded speaker pole (included).

Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Euroblock connector. In an installed application, multiple K Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.

Specifications

K Series
SPECIFICATIONS KSub
Configuration 4th Order Bandpass
Transducers
Low-frequency
2 x 12" cone transducers
Frequency Response (-6 dB) 48 Hz - 134 Hz
Frequency Range (-10 dB) 44 Hz - 148 Hz
Maximum SPL1 130 dB peak
Amplifiers
Power Output2 1000 W continuous Class D (2x500 W)
2000 W peak
Input Impedance (ohms) XLR / ¼": 40k balanced / 20k unbalanced
Controls Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit

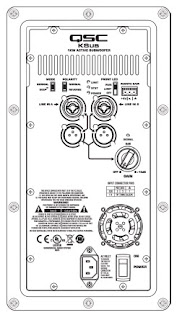

Connectors Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption
(1/8 Power) 100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material Painted birch plywood
Finish Black textured paint
Dimensions (HWD) 26" x 14" x 28.1" (including casters)
665 mm x 356 mm x 714 mm
Weight (Net) 74 lb / 33.6 kg
Available Accessories KSub COVER
1 For comparison purposes and in accordance with common industry practice, maximum peak SPL specifications are theoretical calculations based upon transducer sensitivity and peak available amplifier power.

2 Independent of limiters and driver protection circuits.
