Pioneer DJM-750 Pro DJ 4 channels mixer [ June / July 2013 ]

Pioneer DJM-750 Pro DJ 4 channels mixer [ June / July 2013 ]

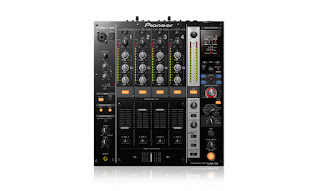

Pioneer has added another new item to its DJ controller line. The new device is called the DJM-750 four-channel digital DJ mixer. The DJ mixer has a high-performance USB soundcard built-in and is fitted with the industry’s first Boost Color FX feature. That feature allows the user to change the intensity of various effects by turning a built-in effects knob.

The Boost Color FX feature allows the user to change the parameter of the effect by varying the rotation speed of the integrated controller knob. The faster the knob is turned, the more the selected effect is intensified. The knob can work with any of the integrated mixer effects including effects such as filter, crush, noise, and jet.

The Sound Color FX feature also offers the same four effects providing more creative mixing options. Pioneer says that users can switch between Sound Color FX and Boost Color FX to match the music playing. The mixer also has a Beat Effect feature with 13 different types of effects that can be combined with both the Boost Color FX and Sound Color FX to create over 100 types of effects.

The DJ mixer features a 24-bit/96 kHz high-performance USB soundcard inside. That USB soundcard supports simultaneous input and output of stereo signals from up to four inputs and outputs. The mixer also has a 32-bit digital sound processor and send/return circuit parts combined with a low-jitter crystal oscillator for precise audio signals an accurate audio reproduction.

Built-in “24bit/96kHz stereo 4-IN 4-OUT high-performance USB sound card”

With a built-in USB sound card enabling simultaneous input-output of stereo signals for four inputs and four outputs*2, 24bit/96kHz high-sampling processing enables various sound signals to be input-output with no deterioration in sound quality.
Support for three sampling rates (96kHz/48kHz/44.1kHz) and ASIO/Core Audio standards*3 means that this device can be used not only for DJ play, but also for music recording and production.
By using the setup utility tool*4 installed on a PC, the signal output path from the mixer can be simply modified as necessary.
The USB port is positioned on top of the device for easy swapping of connectable devices.

High sound quality design ensures clear and powerful DJ sound

As well as adopting high sound quality parts such as the 32bit Digital Sound Processor from Pioneer’s professional DJ/club-oriented “DJM-900nexus” DJ mixer, the “DJM-750” also delivers playback faithful to the original sound thanks to the low-jitter crystal oscillator installed in the clock of its audio circuits. Sound quality is further improved with the adoption of high sound quality parts with SEND/RETURN circuit parts.

Other features

• Information from operation of the device's knobs and buttons is transmitted to external DJ software and effectors, etc. as a MIDI*5 signal, with a “Full Ensemble MIDI” function built-in to enable simultaneous control of this device and external devices.
• Equipped with switch-type 3-band equalizer (+6dB to –26dB) and 3-band isolator (+6dB to –∞dB) on each channel.
• Channel fader knobs and cross-fader knobs adopt a “P-LOCK Fader Cap” applying a lock function to guard against disconnection of knobs.

Main specifications

No. of channels Audio : 4, Mic: 1

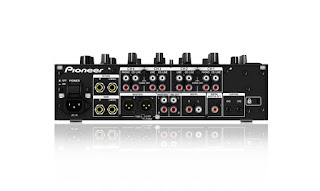

Inputs CD/LINE×4 (RCA), LINE×2 (RCA), PHONO×2 (RCA) MIC×1 (XLR & 1/4 inch PHONE combined use x 1)
Outputs MASTER OUT×2 (RCA×1, XLR×1) BOOTH OUT×1 (RCA) HEADPHONE MONITOR OUT×1 (top side 1/4 inch PHONE) REC OUT×1 (RCA) DIGITAL OUT×1 (COAXIAL)
Other ports SEND×1 (1/4 inch PHONE), RETURN×1 (1/4 inch PHONE)
USB x 1 (top side B port), CONTROL×2 (Φ3.5 mm MINI JACK)
Sampling rate 96 kHz
D/A converter 24 bit
A/D converter 24 bit
Frequency response 20 Hz ~ 20 kHz
Total harmonic distortion 0.004 % or less
LINE INPUT S/N ratio 106 dB or more
Head-room 19 dB
USB Soundcard INPUT : Stereo 4 channel, OUTPUT : Stereo 4 channel
24bit, Sampling rate : 96kHz/48kHz/44.1kHz
Electricity consumption 30 W
Max. external dimensions 320 mm (W) × 376 mm (D) × 108 mm (H)
Weight 7.6 kg
