The Diamond Pro Active Studio monitor contains a bi-amplified amplifier unit designed and manufactured by Wharfedale Professional. This amplifier features an active electronic crossover - a valuable tool allowing the input signal to be divided between the drive units thereby optimising the overall response of the system. The amplifier unit has built in overload protection circuitry to monitor output levels and protect the drivers. As well as the ON/OFF Led, the Diamond Pro Active has a second LED on the front panel that will illuminate when the unit is being driven excessively (as would a CLIP Led on an amplifier).

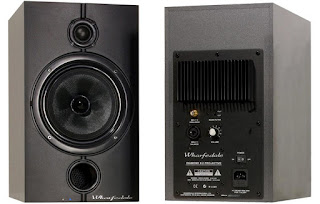

STUDIO 8.2 PRO ACTIVE
Active 2-way high-end studio reference monitor
6.5"LF plus 1" HF
4 ohms system impedance
60W LF+ 40W HF for bi-amplifier package for studio application
45-24kHz frequency response (+/-3dB)
1/4" jack - 1 x XLR combo balanced connector
Iridium color laminate
H/D/W: 364 x 322 x 212 mm, 8kg
SPECIFICATIONS
MODEL Diamond Studio 8.2 ProActive
GENERAL INFO
SYSTEM TYPE BI-AMP 2 WAY
FREQUENCY RESPONSE +/- 3DB 45Hz-24kHz
CROSSOVER SECTION
CROSSOVER FREQUENCY / FILTER 1.9K
PHYSICAL FEATURES
FINISH IRIDIUM color laminate
IN / OUT PANEL (SPEAKER LEVEL)
INPUT CONNECTOR 1 x phono (unbalanced) 1 x XLR-1/4jack combo balanced
AMPLIFIER POWER 60W LF + 40W HF
INPUT SENSITIVITY 0.775V RMS (0 dBu)
DRIVE UNITS 6.5"LF , 1" HF
AMPLIFIER SYSTEM DISTORTION AT 0.1% @ 50W
SYSTEM MAGNETIC SHIELDING Yes
ACTIVE IE SLEW RATE, DISTORTION 10v/micro s
SIGNAL TO NOISE RATIO 100dB
DIMENSIONS (HXWXD)
MM 364 x 212 x 322
WEIGHT
KG 8.0kg
POWER CONSUMPTION
IDLE 22W
FULL OUTPUT 130W
BI-AMPLIFIER POWER (LF/HF) 60W LF + 40W HF
MAINS VOLTAGE
230V SETTING 205-250V
115V SETTING 100-130V
OUTPUT SPL (FROM PEAK POWER) IEC WEIGHTED NOISE @ 108dB
