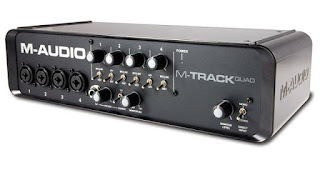

The M-Track Quad from M-Audio is a 4-channel USB audio/MIDI interface, featuring resolution up to 24-bit/96 kHz, XLR/TRS combo inputs, MIDI I/O, zero-latency monitoring and an onboard USB hub. Additionally, the M-Track Quad includes Avid Pro Tools Express software and an iLok USB key.
Each audio channel has a XLR/TRS combo input that can be used for microphone or line-level signals, or switched to accept Hi-Z instruments. Phantom power is also switchable on the front panel. A send/return 1/4" insert is provided on each channel.
In addition to dual 1/4" TRS balanced main outputs, the M-Track Plus has two additional 1/4" TRS outputs for flexibility. A stereo 1/4" headphone output provides zero-latency input monitoring and can be blended with DAW playback via the Monitor Mix knob. The headphone output can also be switched to mono.
The onboard USB hub provides three type A connections. The M-Audio DAW, Ignite by AIR, is also included.
Input Connectors 4 x XLR/TRS combo inputs
Output Connectors 4 x 1/4" TRS balanced (2 x L/R)
Inserts 4 x 1/4" TRS send/return
Headphone Output 1 x 1/4" stereo (switchable to mono)
MIDI Connectors 1 x 5-pin DIN - MIDI In
1 x 5-pin DIN - MIDI Out
USB Connection 1 x USB 2.0 type B
USB Hub 3 x USB type A inputs
Power AC Adapter included
Construction Metal casing
Dimensions Not specified by Manufacturer
Weight Not specified by Manufacturer
M-Audio M-Track Quad - USB Audio/MIDI Interface with Avid Pro Tools Express
Ignite by AIR Software
Avid Pro Tools Express Software
iLok USB Key
AC Adapter
Limited 1-Year Warranty
Product Highlights
4 Inputs / 4 Outputs
24-bit/96kHz Audio Resolution
Zero-Latency Monitoring
XLR/TRS Combo Inputs with Hi-Z Switching
Switchable Phantom Power
1/4" Send/Return Inserts
Headphone Output with Independent Volume
Includes Ignite and Pro Tools Express
MIDI Input and Output Connections
Onboard 3-Port USB Hub
