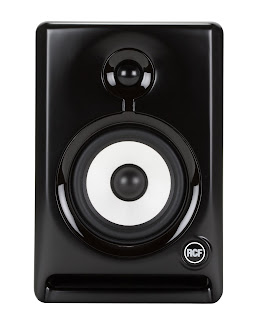

RCF AYRA 5 ACTIVE TWO-WAY PROFESSIONAL MONITOR

RCF AYRA 5 ACTIVE TWO-WAY PROFESSIONAL MONITOR



AYRA 5 is a two-way reference studio monitor that is designed for near field applications, equally suited to your home recording studio. AYRA 5 features a high quality soft dome tweeter and a 5” composite fibreglass woofer.
The AYRA Series is optimized to deliver the best sound for a variety of applications. Whether you are working with a near field mix at your home studio, you need a clear and loud sound for your multimedia gaming or simply need some good monitors for your personal computer.

FEATURES

True active 35 W + 20 W class AB design
50 Hz – 20.000 Hz frequency response
Precision directivity tweeter waveguide
Fully featured input board
5" composite fiberglass woofer
1" soft dome tweeter
Reflection free front cabinet design
Low distortion reflex port

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:55 Hz ÷ 20000 Hz
Max SPL:106 dB
Horizontal coverage angle:110°
Vertical coverage angle:70°
Compression Driver:1", 25mm coice coil
Woofer:5"

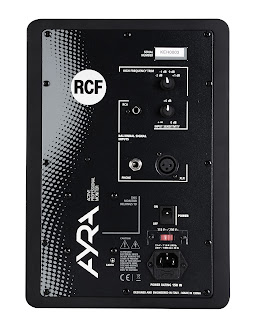

INPUT/OUTPUT SECTION

Input signal:10 K ohm
Input connectors:XLR, Jack, RCA
Input sensitivity:-2 dBu

PROCESSOR SECTION

Crossover frequencies:2100 Hz
Limiter:Soft limiter
Controls:HF adjust

AMPLIFIER SPECIFICATIONS

Total power:55 W RMS
High frequencies:20 W RMS
Low frequencies:35 W RMS
Connections:VDE

CABINET

Cabinet Material:Lacquer painted medium density
Colour:Semi-matt Black

PHYSICAL SPECIFICATIONS

Height:274/10.78 mm/inch
Width:186/7.32 mm/inch
Depth:266/10.47 mm/inch
Net Weight:6.2/13.66 kg/lbs
